Witleaf - CapnoSET

  • CapnoSET

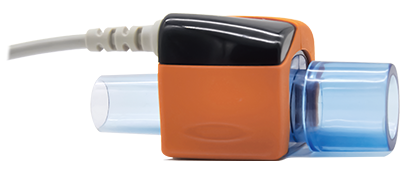

    CapnoSET integrates wSmartGas® and low-temperature rapid measurement technology, delivering full-accuracy EtCO₂ readings instantly at power-on and stable performance from 0°C to 50°C. Its rugged design offers excellent drop and impact resistance, ideal for emergency transport, rescue, and critical care.Suitable for OR, ICU, NICU, and emergency settings, CapnoSET is widely used in Class II and III medical devices. It supports both reusable and single-use consumables for adult, pediatric, and neonatal monitoring.
    Technical Specifications
    SPECIFICATIONS
    VALUES
    Parameters
    EtCO2、FICO2、Realtime Capnography
    Physical Dimensions
    40mm×36mm×32mm
    Voltage
    DC 5V±5%
    Power Consumption
    ≤0.7W (typical value, input voltage 5V±5%.) Maximum instantaneous power consumption: 2.5W
    Communication Protocol
    RS232
    Operating Conditions
    0°C to 50°C (32°F to 122°F),15%-90% non-condensing humidity
    Storage Conditions
    -20°C to 70°C (-4°F to +158°F),15%-95% non-condensing humidity
    Advantage Technologies
    Plug-and-play design with wide operating temperature range
    Shock and drop-resistant construction, IPX4 protection rating
    Supports WITLEAF communication protocol and optional compatible protocols
    Dedicated consumables designed to meet ISO 18562-1/-2/-3/-4 biocompatibility requirements
    Complies with IEC 60601-1-2:2014/AMD1:2020 for EMC, with radiated immunity meeting Class B requirements
